4Pcs Temperature Switch Normally Open 30Degrees Celsius KSD-01F Thermal Switch N.O Thermostat Temperature Controller

The KSD-01F temperature control switch adopts a TO-220 package form and features a snap-action, single-pole single-throw (SPST) contact design with 100% conduction structure. When the ambient temperature exceeds the rated value, the calibrated bimetallic disc responds rapidly, thereby opening or closing the circuit. When the temperature drops to the reset point, the bimetallic disc resets quickly, allowing repeated operation to ensure reliable temperature protection. Product Use: Suitable For Space-Saving PC Boards, Typical Uses Include Alarming Or Shutting Down Systems When Circuits Overheat; Computers And Computer Peripheral Equipment, Electrical Equipment; Electronics; Power Supply; Aircraft, Automobiles, Medical Equipment And Test Equipment; Temperature Control And Thermal Overload Protection In Household Appliances And Circuit Boards Technical Specifications Contact Rating: 220VAC 1A or 24VDC 3A Dimensions: 29.7 x 10.2 x 4.7 mm Contact Type: Normally Open (H) Package Type: TO-220 with metal backplate Contact Resistance: Max 50 milliohms Insulation Resistance: Min 100 megaohms (at 500VDC) Dielectric Strength: 1500V/DC, 60Hz Temperature Tolerance: +/-5 degrees Celsius Operating Temperature Range: -55 to 160 degrees Celsius (Max short-term exposure: 260 degrees Celsius for 10 seconds) Weight: Max 2g

• Temperature: 30 Degrees Celsius / Contact Rating: 220VAC 1A or 24VDC 3A
• Contact Type: Normally Open (H)

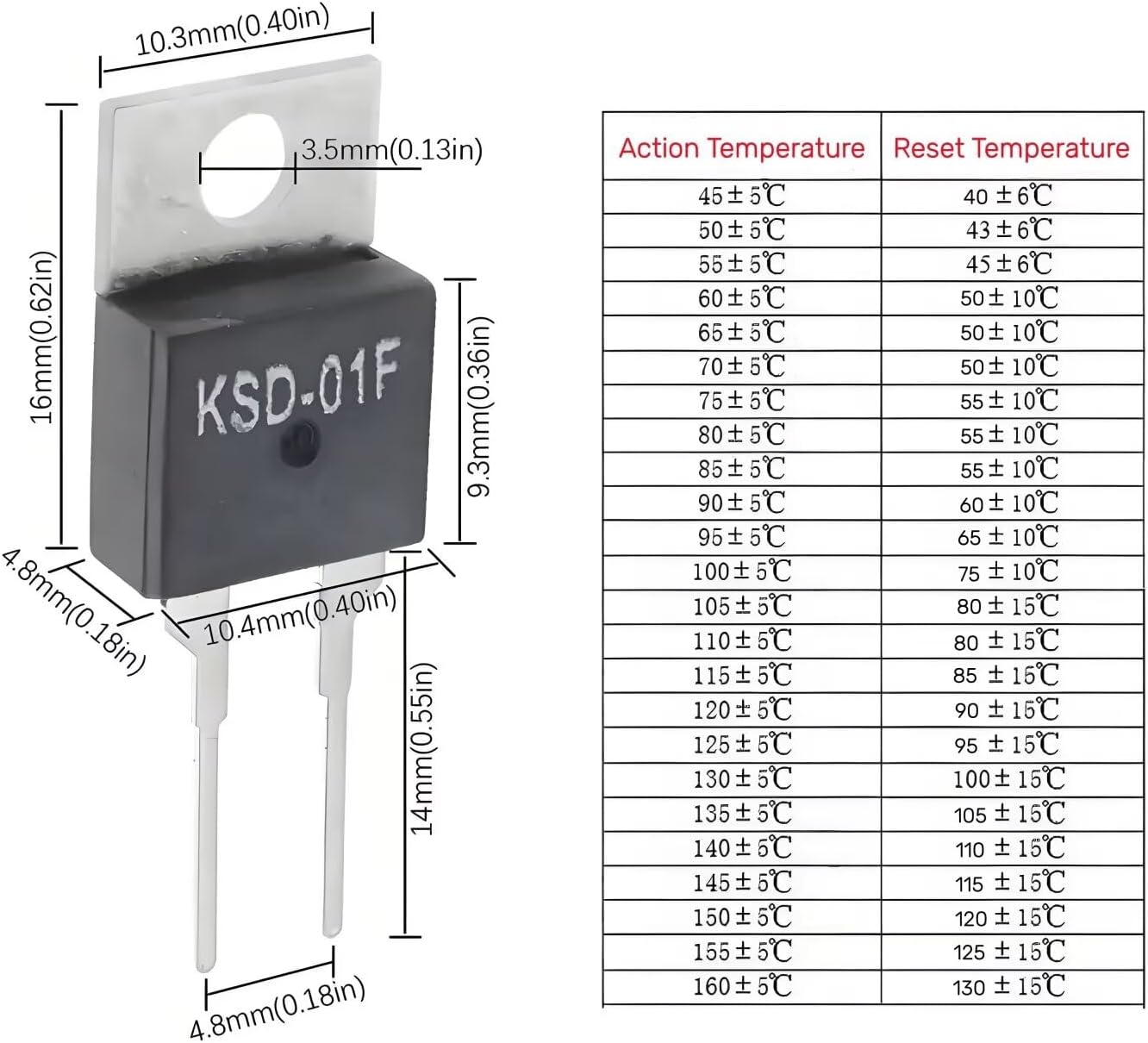

• Temperature Tolerance: +/-5¡ãC / Dimensions: 29.7 x 10.2 x 4.7 mm
• Apply to circuit board of temperature control or thermal overload protection use
• Product Use: Suitable for Space-Saving PC Boards, Typical Uses include Alarming or Shutting Down Systems When Circuits Overheat; Computers and Computer Peripheral Equipment, Electrical Equipment;
